MCP Server (Experimental)

CortexBrain ships a Model Context Protocol (MCP) server that exposes its eBPF-derived metrics to AI assistants (opencode, Claude Desktop, etc.) so they can query the cluster state in natural language. The server is a thin stdio JSON-RPC process that translates tool calls into PromQL queries against a local Prometheus.

What is the Model Context Protocol?

The Model Context Protocol is an open standard (originated by Anthropic) for exposing tools, resources, and prompts to LLM-based assistants over a standard JSON-RPC transport. An MCP host (opencode, Claude Desktop, Cursor) spawns an MCP server as a local child process and calls its tools when the model needs to interact with an external system. CortexBrain uses MCP to let an assistant query Prometheus metrics collected from eBPF.

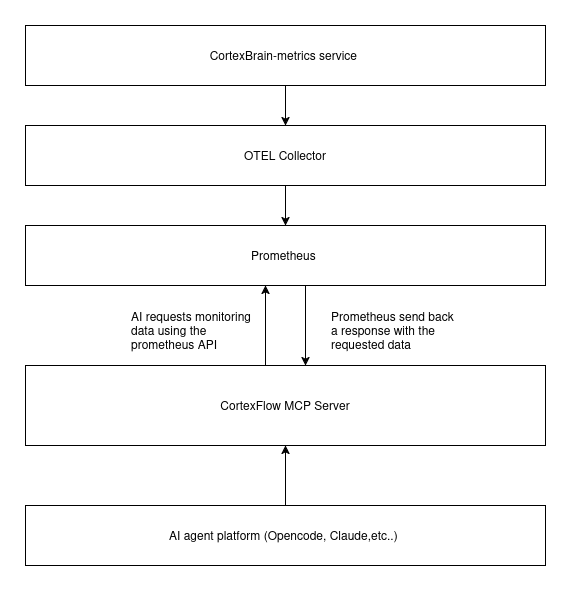

Architecture

cortexflow-mcp

The MCP server is a local standalone binary, not a Kubernetes workload and not a sidecar. The operator builds it and configures an MCP host to spawn it; the host owns the process lifecycle.

The tools

Metrics are exposed as tools that your AI agent can call. It's also possible to use it in agentic-workflows. All the tools share the same input schema:

{
  "type": "object",
  "properties": {
    "container_name": { "type": "string" },
    "timeframe":       { "type": "string" }
  },
  "required": ["container_name", "timeframe"]
}

container_name - a string matched against the Prometheus container_name label (e.g. "grafana"). Note that container_name refers directly to the container image used, this is a semantic inefficiency that will be fixed in future
timeframe - a PromQL range-vector duration (e.g. "10m").

Each tool runs a sum by(container_name) (rate(...[timeframe])) query and returns the Prometheus JSON response as a pretty-printed string.

Note

CortexFlow MCP is in its early stages and doesn't have full access to the full metrics. If you are willing to make any tests please refer to contact page

Tool name	Description	PromQL metric	OTel instrument family
`get_cpu_bytes`	CPU bytes allocation per event	`cortexbrain_cpu_bytes_alloc`	gauge
`get_memory_allocated_bytes`	Bytes requested via `mmap` syscalls	`cortexbrain_enter_mem_alloc`	gauge
`get_events`	Total eBPF events processed across all perf buffers	`cortexbrain_events_total`	counter
`get_l4_events`	Total socket state events processed	`cortexbrain_socket_events_total`	counter
`get_ssl_write_events`	Total bytes requested by `ssl_write`	`cortexbrain_ssl_write_bytes`	gauge
`get_ssl_read_events`	Total bytes requested by `ssl_read`	`cortexbrain_ssl_read_bytes`	gauge

The cortexbrain_ prefix comes from the OTLP collector's Prometheus exporter namespace: cortexbrain setting (see Examples/run-with-docker/otel-collector-config.yaml). The base instrument names (cpu_bytes_alloc, events_total, ...) are defined in core/common/src/semantic.rs on the metrics-patch branch.

Configuration in opencode

The MCP server is configured in ~/.config/opencode/opencode.jsonc (or the project-local .opencode/opencode.jsonc):

{
  "mcp": {
    "cortexflow-mcp": {
      "type": "local",
      "command": ["/home/<user>/CortexBrain/mcp/target/release/mcp"],
      "enabled": true
    }
  }
}

"type": "local" + the command array tells opencode to spawn the binary as a child process and speak MCP over its stdin/stdout.
"enabled": true auto-starts the server when opencode launches.
The "environment" block (commented out in the example) can inject env vars into the child process - currently unused because the Prometheus URL is hardcoded.

When the assistant needs a metric, opencode sends a tools/call request with the tool name and arguments; the server runs the PromQL and returns the JSON result as TextContent.

Building the server

From the repository root (the mcp/ crate must be checked out - it is on origin/0.1.5 and origin/metrics-patch):

cargo build --release -p mcp
