Architecture Overview

This page describes the CortexBrain architecture with a focus on how data flows from the Linux kernel, through eBPF programs and pinned BPF maps, to the user-space gRPC agent, and finally to the cfcli and the Grafana Dashboard.

The conceptual diagram on the home page gives the high-level picture; in this page you will find the full detailed pipeline.

Architecture Resume

CortexBrain is built around a four-stage pipeline. Each stage has a clear responsibility and a well-defined boundary with the next.

Stage Components Role Output
1. Kernel instrumentation conntracker, metrics_tracer (eBPF) Observe at kernel level via TC classifiers and kprobes PerfEventArray fills
2. Map pinning identity, metrics (user-space loaders) Load + attach the eBPF programs, pin the maps to /sys/fs/bpf/, seed policy Pinned maps in bpffs
3. Aggregation & serving agent (core/api) - gRPC on :9090 and opentelemetry collector on :4317 Open pinned maps, drain perf buffers into mpsc channels, serve the RPC and aggregate the data for visualization gRPC responses
4. Consumption cfcli (live), prometheus ,dashboard (grafana) Forwards the data to the UI components

Reading order

If you want the detail behind each stage, after this page read the Agent API Overview for the gRPC surface and the Integrated Metrics page for the metric field schemas.

Full Pipeline

Warn

The 0.1.5 version adds OpenTelemetry instruments across socket/network, CPU, memory, scheduler, and SSL tracing (experimental) see the Integrated Metrics page for the full instrument list.

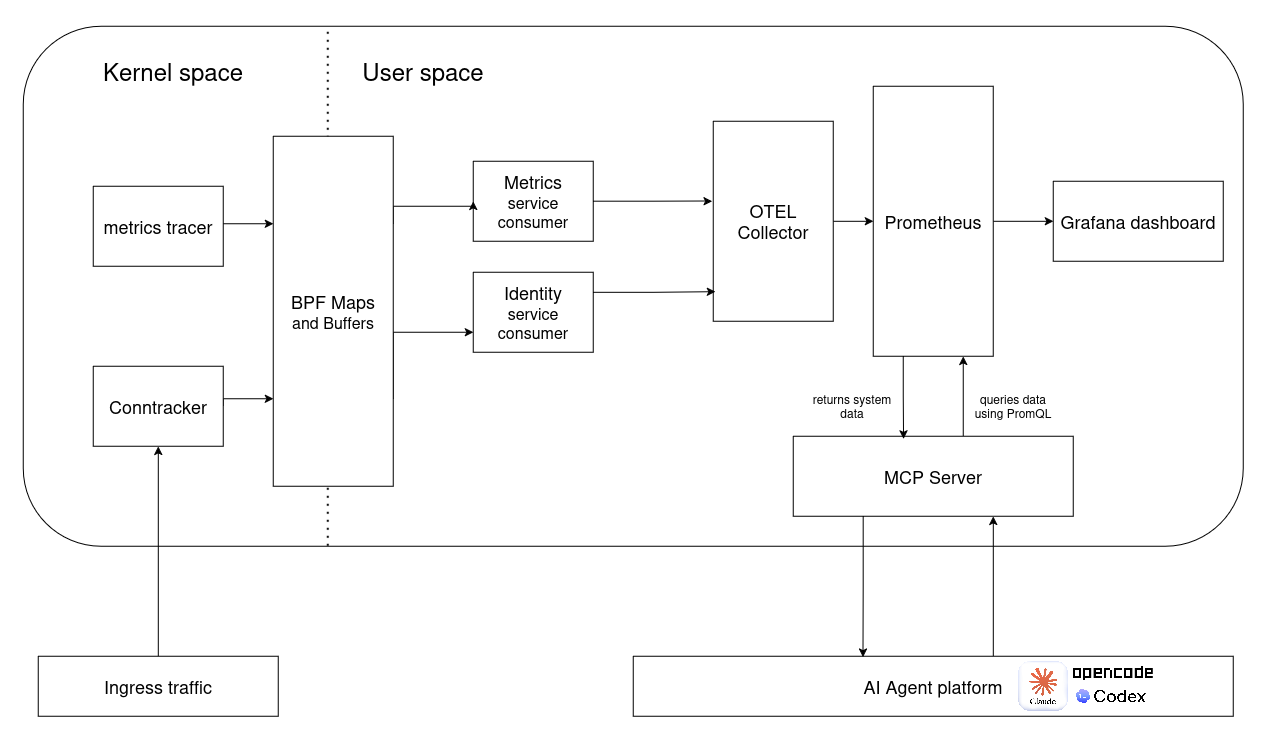

cf-architecture-v.0.1.5

Kernel hooks

CortexBrain attaches eBPF programs to the following kernel hook points. The diagram below shows where these hooks sit in the Linux network stack.

Linux network stack and eBPF hooks

Program Attach type Target function BPF map written Data produced
identity_classifier TC classifier (ingress) veth interfaces EventsMap PacketLog (per-packet metadata)
veth_creation_trace kprobe register_netdevice veth_identity_map VethLog (event_type=1)
veth_deletion_trace kprobe unregister_netdevice_queue veth_identity_map VethLog (event_type=2)
tcp_message_tracer kprobe tcp_v4_rcv, tcp_v4_connect TcpPacketRegistry TcpPacketRegistry (TCP flow metadata)
metrics_tracer kprobe tcp_identify_packet_loss net_metrics NetworkMetrics (socket stats + drops)
tcp_connect kprobe tcp_v4_connect, tcp_v6_connect time_stamp_start start timestamp keyed by socket pointer
tcp_rcv_state_process kprobe tcp_rcv_state_process time_stamp_events TimeStampEvent (latency delta_us)

Source files: - core/src/components/conntracker/src/main.rs and sub-modules (tc.rs, veth_tracer.rs, tcp_analyzer.rs, data_structures.rs) - core/src/components/metrics_tracer/src/main.rs and data_structures.rs

Deployment topology

All CortexBrain components run in the cortexflow namespace. The core deployments use hostPID: true, hostNetwork: true, and privileged: true with the BPF, SYS_ADMIN, NET_ADMIN, SYS_PTRACE, and SYS_RESOURCE capabilities, and mount the host /sys/fs/bpf (bidirectional), /proc, and /lib/modules.

Pod (Deployment) Container & binary Image Network exposure BPF maps (producer / consumer)
cortexflow-agent agent -> /usr/local/bin/agent-api lorenzotettamanti/cortexflow-agent:latest Service cortexflow-agent ClusterIP TCP 9090 (grpc); reached by cfcli via kubectl port-forward Consumer only - reads events_map, net_metrics, time_stamp_events, blocklist_map
cortexflow-identity initContainer bpf-map-permissions (mounts bpffs); identity -> /usr/local/bin/cortexflow-identity-service; sidecar bpftool-control-manager lorenzotettamanti/cortexflow-identity:latest None (no Service) Producer - pins events_map, veth_map, blocklist_map, tcp_packet_registry; seeds blocklist_map from the cortexbrain-client-config ConfigMap
cortexflow-metrics metrics -> /usr/local/bin/cortexflow-metrics; sidecar bpftool-control-manager lorenzotettamanti/cortexflow-metrics:latest None (no Service) Producer - pins net_metrics, time_stamp_events

Manifests: core/src/testing/agent.yaml, core/src/testing/identity.yaml, core/src/testing/metrics.yaml
